I must be lost as last years easter egg. I looker on the bandit tranny sections but did not see the part in question. Am I blind?



Looks like it's part # 92150-1803

Found it on the crankcase parts schematic.

Same part # for '06-'13



I think NDKLX'd has it right.

On bikebandit (it is on the crankcase schematic)
92150:
BOLT,RETURN SPRING $6

Dan

bike bandit part number 873261



thanks all. i never thought to look at the crankcase schematic.

dang dan, you are an early bird!

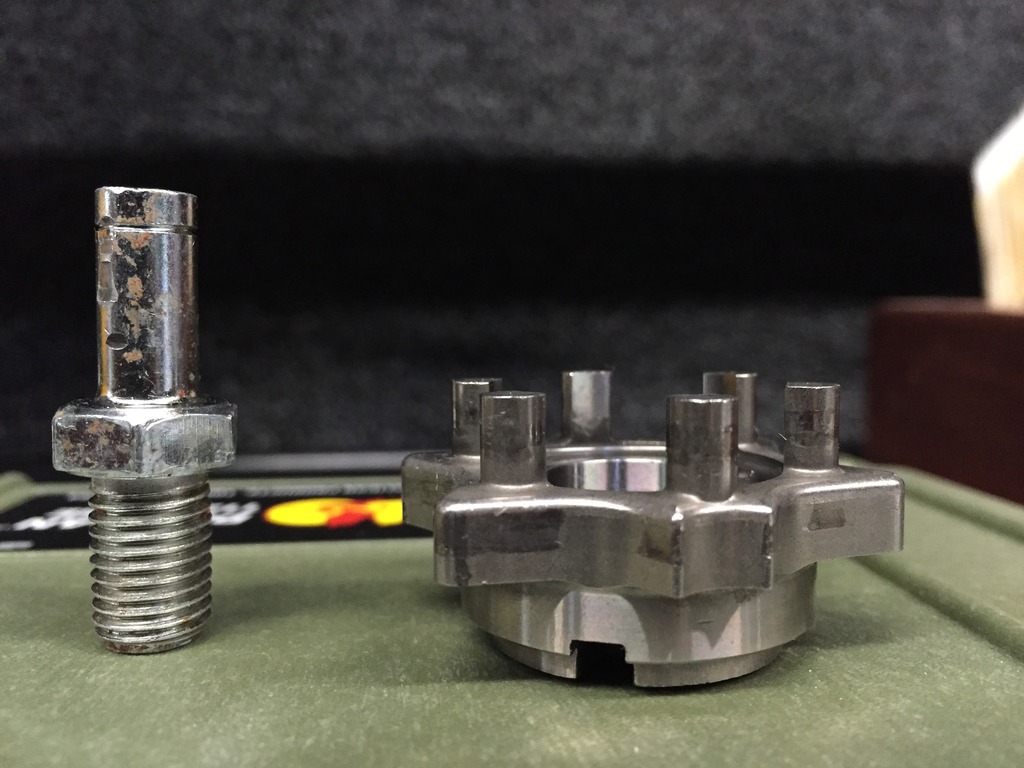

finally tore into my gearbox and found a bent pin similar to Dan's.

will get a new one on order thanks to this thread.



Good deal , looks like you found your problem.
Dan



This thread should be a sticky too. Mods? Deej?

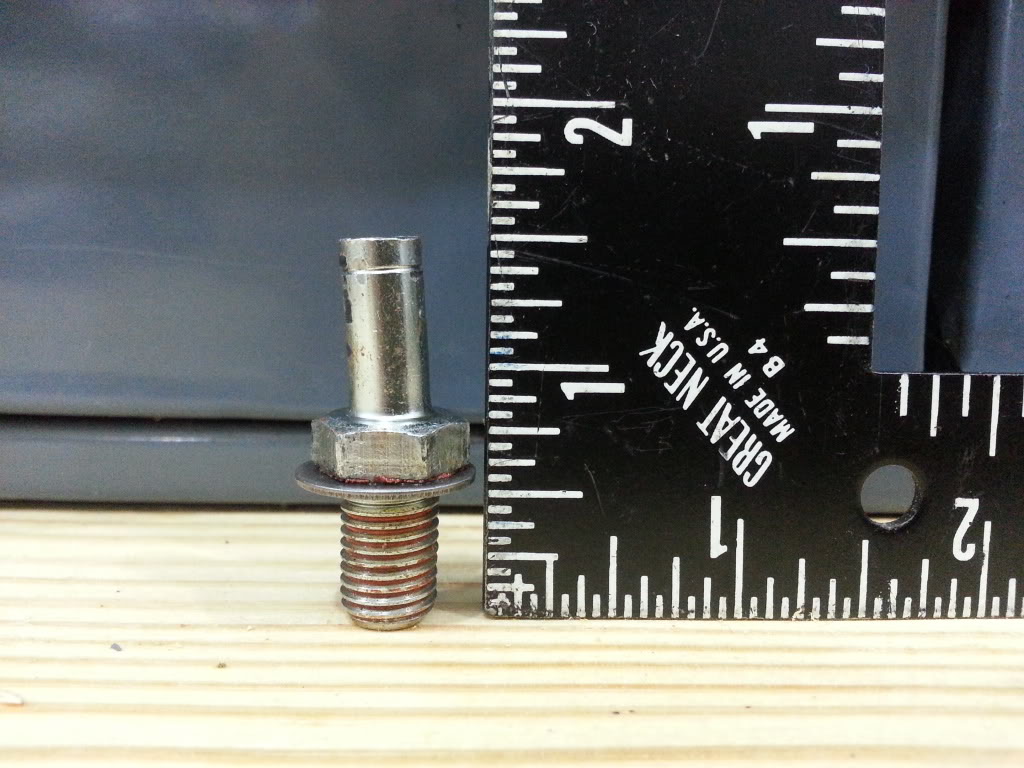

my pin, not very bent but some good chew marks



Yikes!



follow-up to this thread...

went on a ~400mile trip last weekend. dumped the klx several times and pretzeled my shifter 2 times.

after first time and rebending the shifter back, i could not shift in/out of gear and was stuck in 4th. great...i suspected something broke inside and it was going to be a long 120mi ride home.

upon riding the bike back to camp and taking the shifter cover off, the spring (92081 in the attached schematic) on the shifter fork became dislodged and was lying inside the case.

put the spring back on, put everything back together, and all shifted fine for the rest of the weekend.

anybody have this happen to them? i am going to put on a cable snake to hopefully minimize damage in the future.
