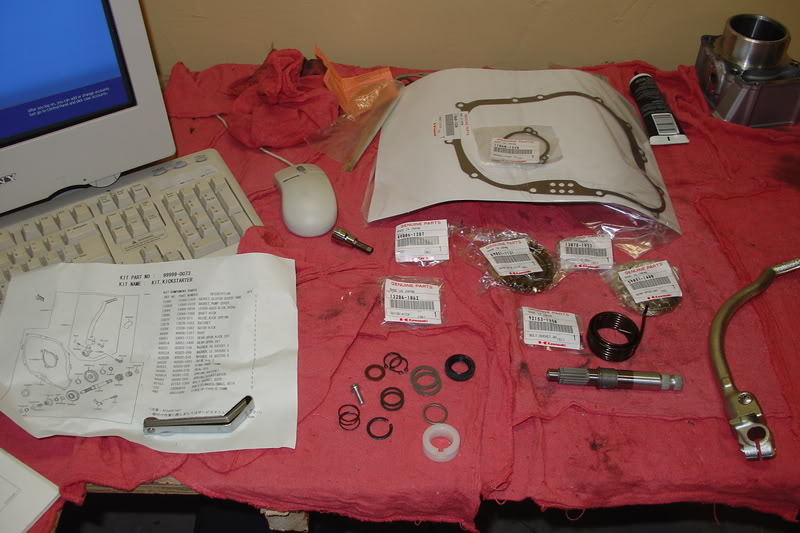

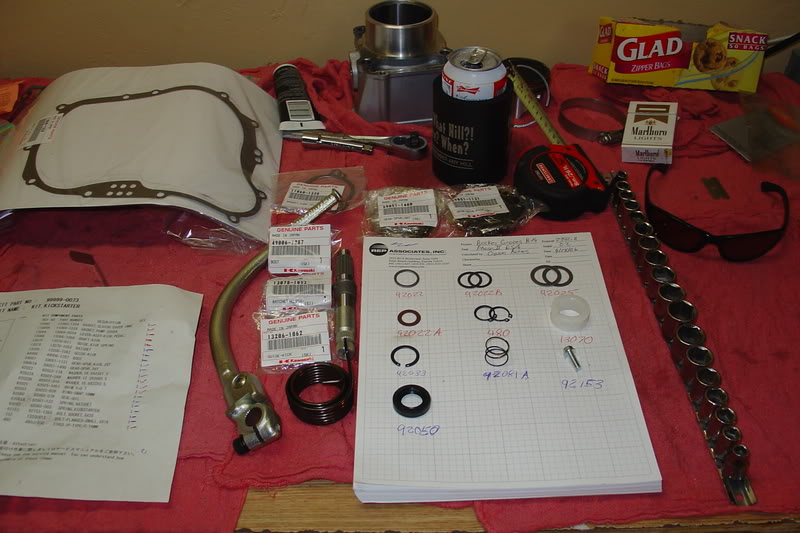

Here's some pics and limited instructions of me installing the kickstart kit on our little klx. Please note I'm used to working on outboards and other marine stuff...... this bike stuff is a little new to me. [/align][/align]Here's the kickstart kit out of the bag, notice all the washers and shims with no bags or part #s

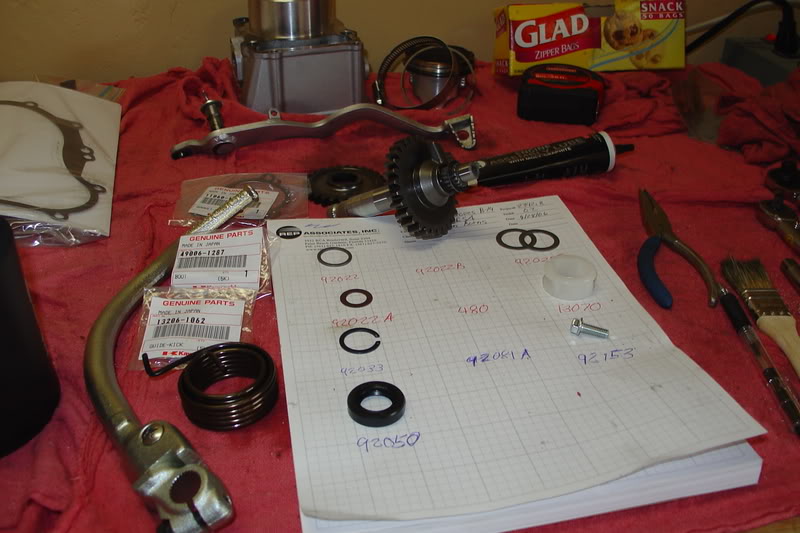

No problem, nothing a beer and some calipers can't resolve

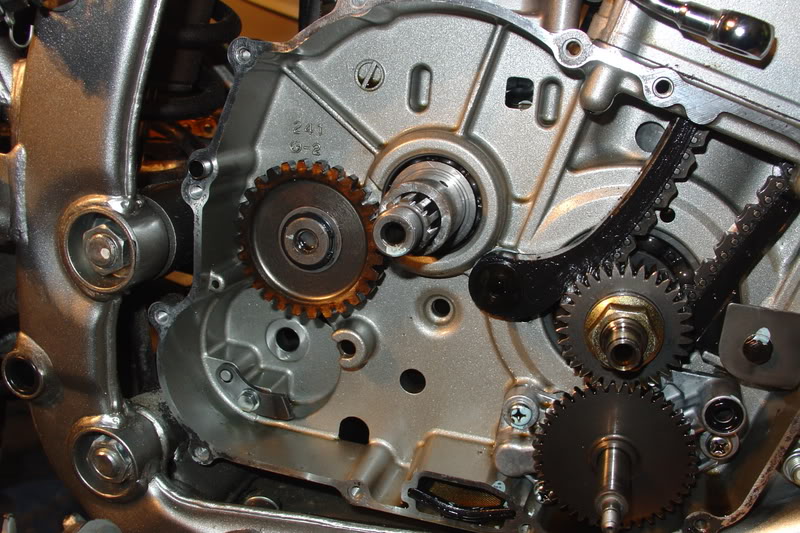

Drain oil and coolant......remove water pump cover and associated impeller and the rear brake pedal with associated springs, don't forget to remove the clutch cable clip. Now remove right side cover and you should look like this.
[/align][/align]Well at this point I wanted to install a part so I put on the ratchet gear kick guide....only 32 parts to go


Unfortunately, the idle gear goes under the clutch, so the left side cover needs to be removed to hold flywheel while removing the clutch. First to go is the left side e-start gear gizmo (technical term)

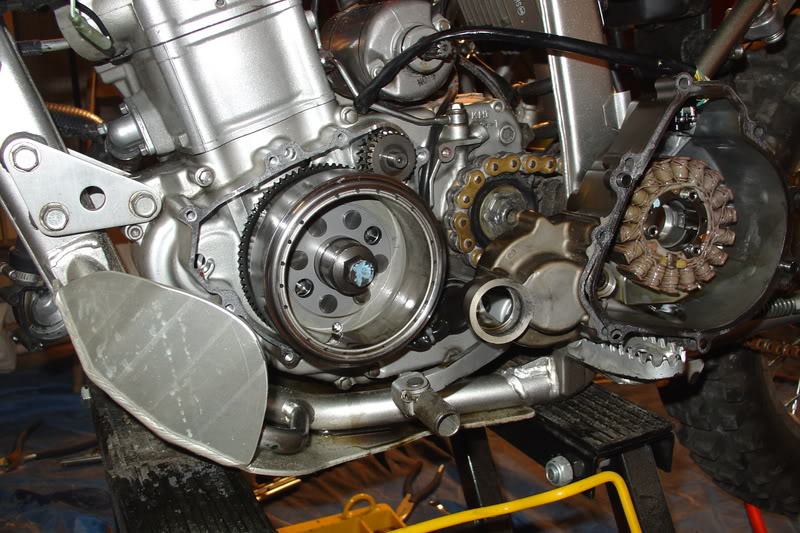

Now remove the whole left side cover......notice how big and nice our stator looks at least from my marine point of view.


Now you're supposed to use Kawi special tool part no blah, blah......I used a $2.99 harbor freight pipe wrench along with my Utah skid plate to hold the fly wheel while I grabbed and removed the clutch.

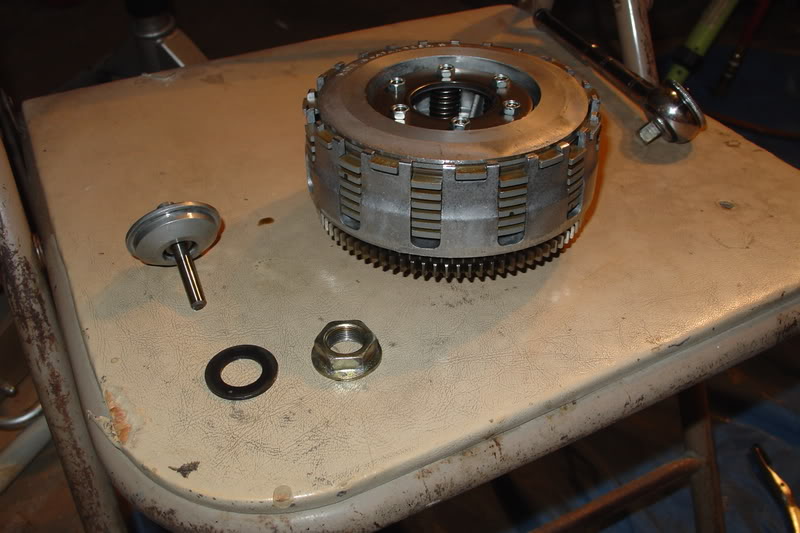

[/align][/align]Clutch came off no problem, but it did take a little technique and patience... here's the removed right side clutch basket.

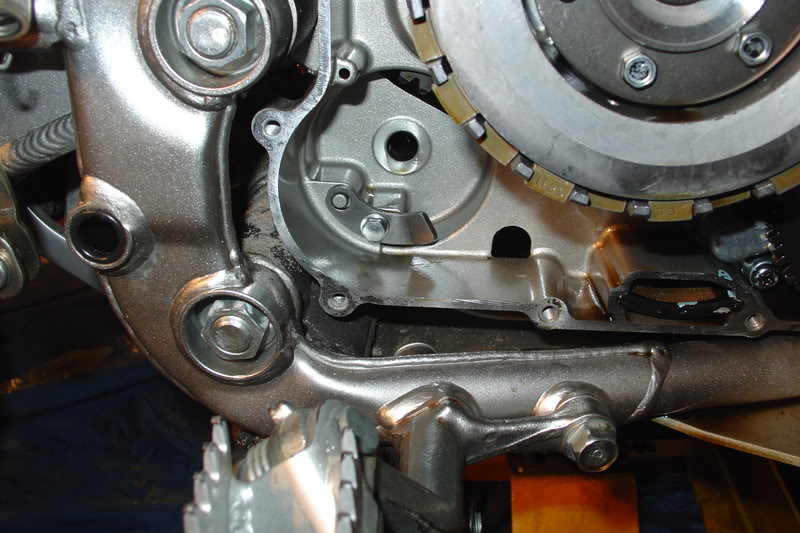

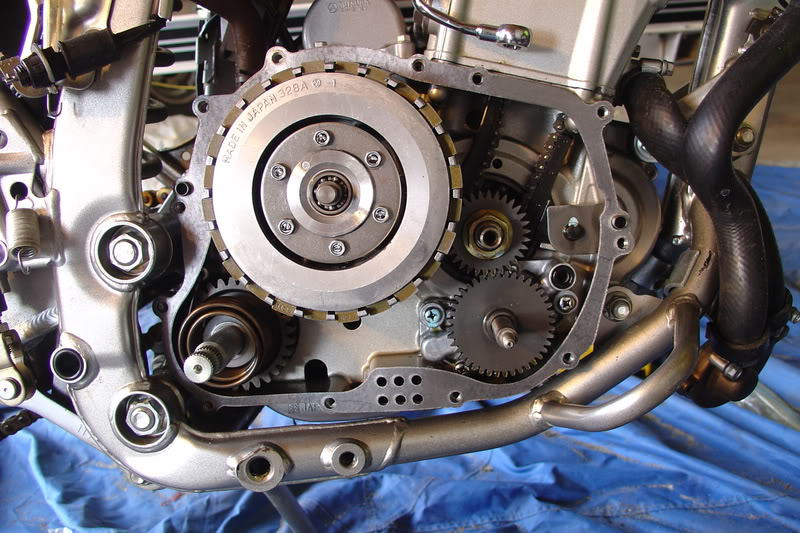

Here's a pic of the right side after clutch removal.


Ok, now I started to assemble the kickstarter itself.......make sure ya line up the indent on the shaft spline with the indent on the ratchet gear, hope you can see it in the pic.


Here's another view of the kickstart shaft, notice I'm getting low on parts

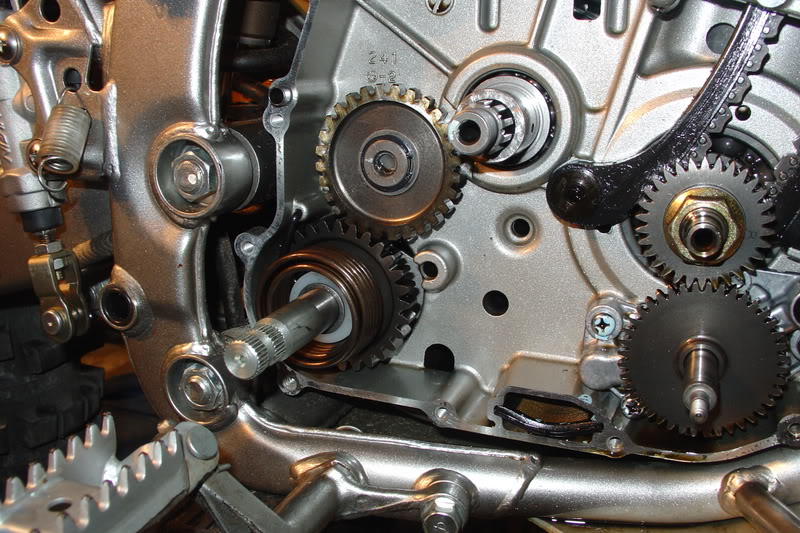

Now install the Idle Gear....no biggie just a circle clip and shims.


Slide in the kickstart shaft and Tension the spring 3/4 revolution counter clockwise so it locks in the engine case with tension.


Reinstall clutch

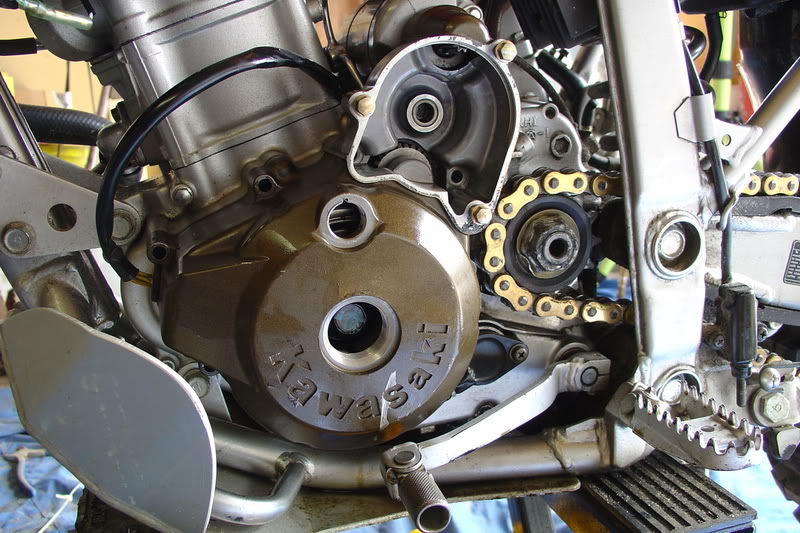

[/align][/align]Put left side cover back on

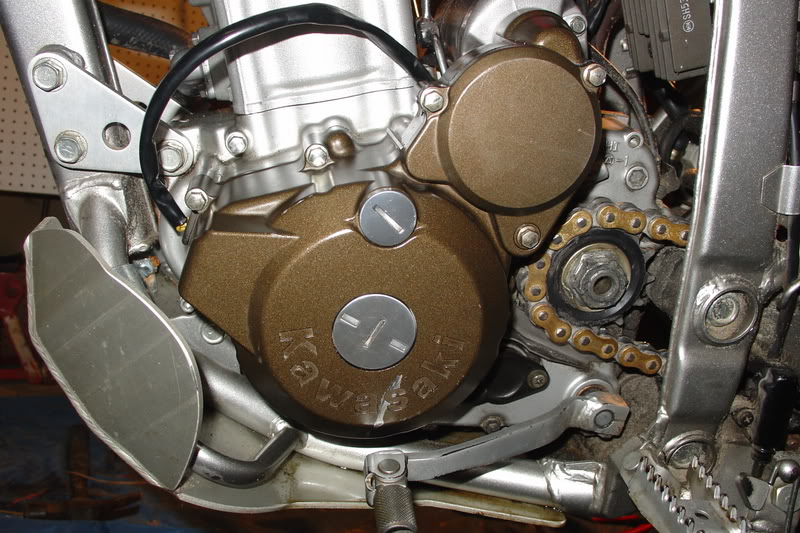

Tighten up and finish the left side


Damn, with the kickstarter shaft I couldn't get the right side cover on due to the foot peg placement...... and after all this I gotta take off the skid plate to take off the foot peg See
[/align][/align]Ok, footpeg and skid plate off

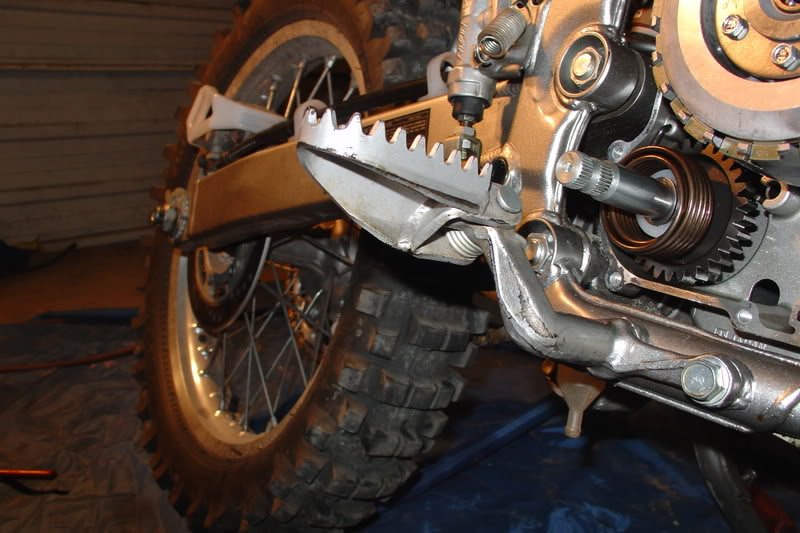

[/align][/align]Hey, I think I spy a kickstarter

[/align]



No thanks, I'm not that good.

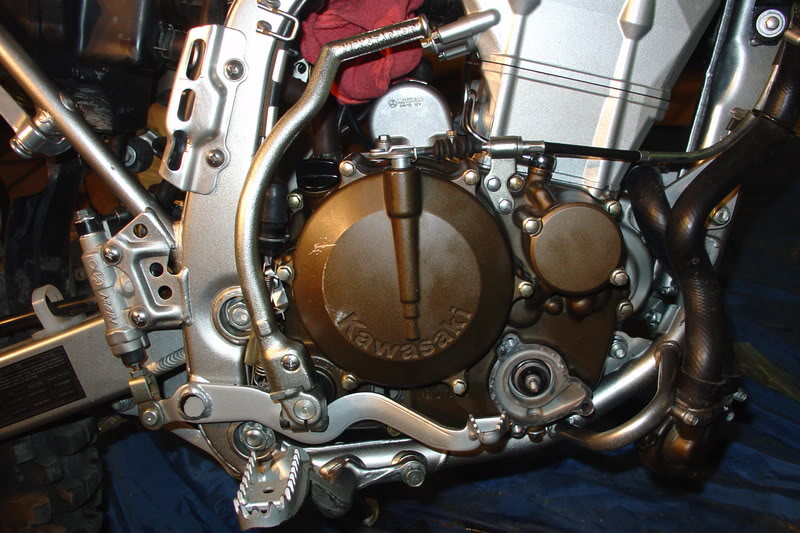

All done.....post and critique away.
