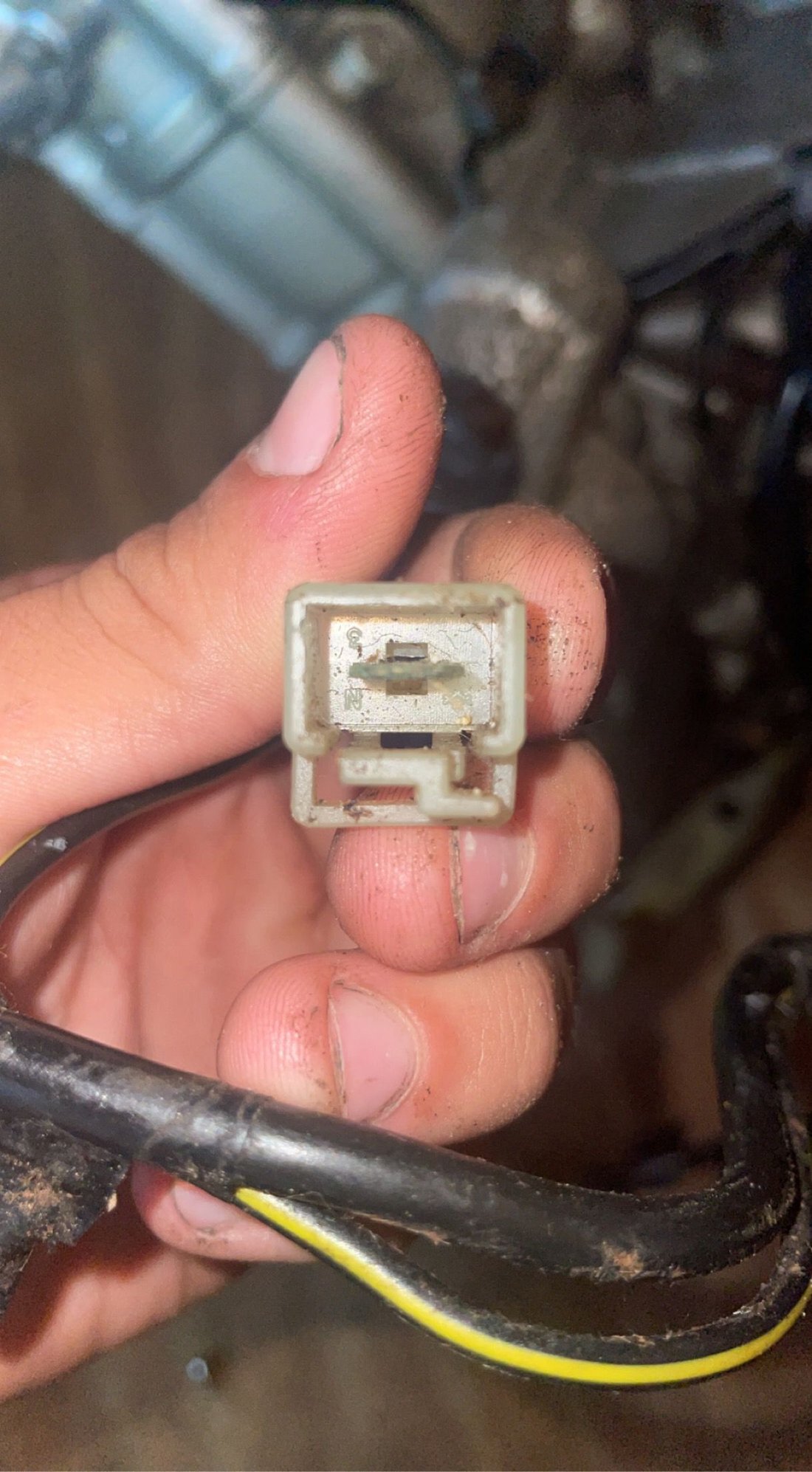

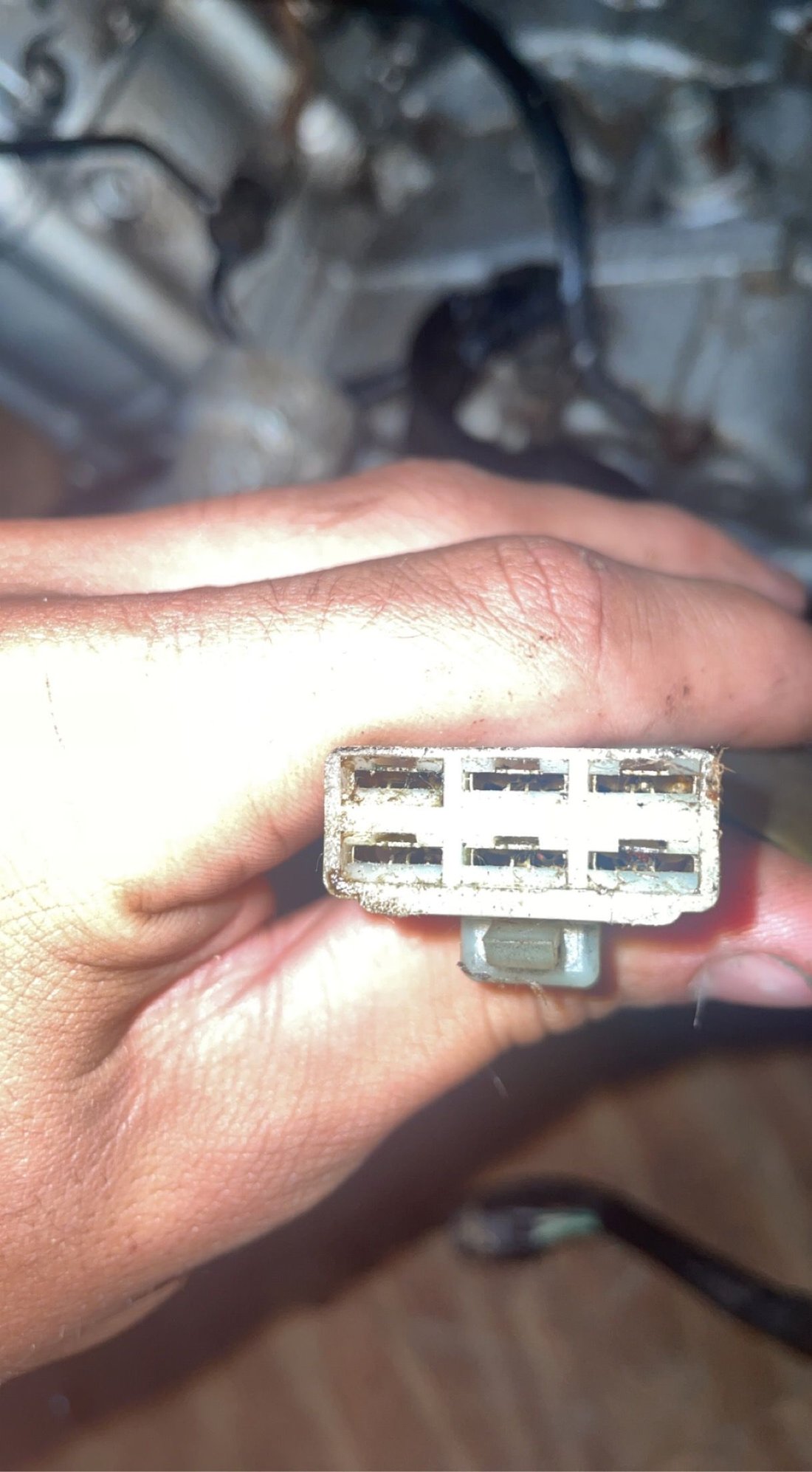

I just bought an engine from what was supposed to be off of a 2014 klx250s and I can’t find the wiring diagrams that match my connectors coming off of the engine and what they do. Only one I’m sure of is the connector with 6 pins would be for the reg/rectifier. Any help is appreciated!! And just for clarification I’m putting this on a go kart so I only need the bare minimum to run it no accesories
09-19-2022, 03:12 PM
Wiring
