Default How to: KCA removal on 09 KLX250S-California model

I completed the free mods on my 2009 KLX250S California model and I thought it would be a good idea to do write up on how to remove the smog crap on the 09 CA model. First of all, let me thank everybody here for all the helpful information you guys have posted! I couldn't have done this without you guys! I have never done a write up of any sort so bare with it. I did this mod to clean up the engine compartment and for reduced exhaust temperature. This does not do anything performance wise. Please excuse my dirty bike! I made sure that no dirt got inside any of the parts I took off.

Tools needed: 8mm socket
10mm socket
14mm socket
socket wrench
needle nose pliers
flat head screwdriver
maybe a breaker bar for the front engine mount bolt and screws


Parts needed: 2 packs of assorted rubbercaps from autozone
6ft. 7/32 rubber hose


This is what comes off...
Click the image to open in full size.

Start by unplugging the hoses that's connected to the airbox
Click the image to open in full size.

unplug the hose with round piece connected between the header and valve cover
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Remove the canister and the canister shield using a 14mm socket to remove the bolts.
Click the image to open in full size.

Remove the two 8mm bolts and remove the small canister...
Click the image to open in full size.

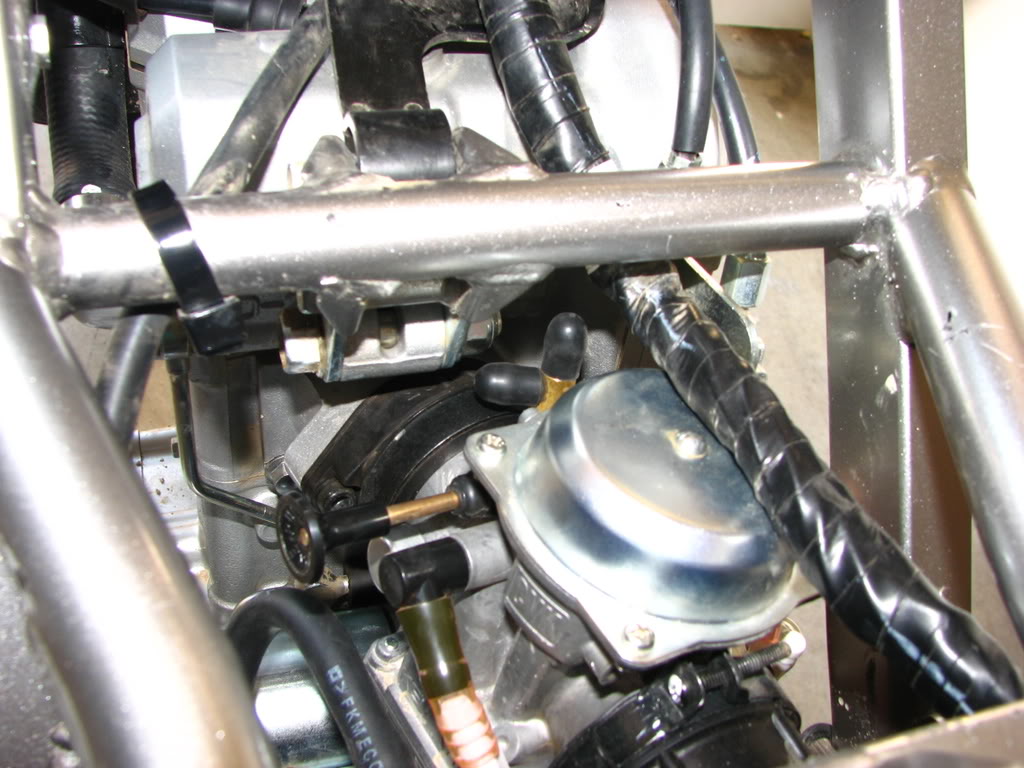

Remove the two hoses connected to the carburator. This picture is after I plugged it up. Sorry no picture before.
Click the image to open in full size.

So this is what needs to be plugged up...
Two outlets on air box
Click the image to open in full size.

Outlet by exhaust header
Click the image to open in full size.

Two outlets on carburator
Click the image to open in full size.

Make 2 vent hoses for the fuel tank red and blue vents. There should already a hose for one of the vents so you only need to cut 2 hoses.
Click the image to open in full size.

Run the vent lines to the rear shock...
Click the image to open in full size.

This is what it looks like after...
Click the image to open in full size.

After doing this mod, be aware that when you overfill your tank, you will see fuel dripping from one of the hoses. This mod made it easier to pull the fuel tank off.

Register now for free or log-in if already registered to remove this ad!
__________________
Reply With Quote
  #2
Old 08-15-2008, 01:33 AM
WestOzKLX's Avatar
Senior Member
1st Gear Member

Join Date: Mar 2008
Location: Perth, Western Australia.
Posts: 3,229
Send a message via Skype™ to WestOzKLX
Default

Nice write up. PITA for all Californians though.
__________________
Reply With Quote
  #3
Old 08-15-2008, 06:49 AM
Senior Member
1st Gear Member

Join Date: Jun 2008
Location: So Cal
Posts: 1,024
Default

great job.

someone needed to do it
Reply With Quote
  #4
Old 08-16-2008, 07:28 AM
punkenduro09's Avatar
Senior Member
1st Gear Member

Join Date: Jul 2008
Location: Murrieta, Ca
Posts: 1,439
Send a message via AIM to punkenduro09
Default

good post, ill keep this one for when i get around to mods.
Reply With Quote
  #5
Old 08-17-2008, 10:49 AM
Senior Member
1st Gear Member

Join Date: Nov 2007
Location:
Posts: 270
Default Re:

Good work and nice writeup, you sure do get some extra crap over there..

Cheers
Chris.
__________________
http://www.obtrailriders.com (administrator)
Reply With Quote
  #6
Old 08-17-2008, 11:47 PM
LearjetMinako's Avatar
Senior Member
1st Gear Member

Join Date: May 2007
Location: Oklahoma City, OK
Posts: 1,102
Default

Is it illegal to remove the smog crap, espacially for CARB states?

Either way, good job.
__________________
2006 Kawasaki KLX250s, 8,ooo miles
1996 Ford Ranger XLT, 125,ooo miles
DynoJet 2152 (124 main, 3rd notch w/ 3 washers on top, 2 turns out on idle)
KDX 220 Snorkle, TwinAir air filter
Reply With Quote
  #7
Old 03-15-2012, 07:00 PM
rgoers's Avatar
Senior Member
1st Gear Member

Join Date: Mar 2011
Location: Northern Utah
Posts: 852
Default

Appreciate the well-written instructions!!! I will be getting rid of my extra smog stuff this weekend!
__________________
'09 KLX250S; Whaletail-ectomy, Utah Ricochet skid plate, Nomadic rear rack, Wolfman E-10 Enduro bags, Wolfman Alfa-Beta duffle, Maier hand guards, SpeedoDRD, UNVBRKFLSH36 Brake Light Flasher, DynoJet 2152 Stage 2 (DJ120 main, second notch, 2 1/4 turns); KDX200 snorkel; DEP exhaust; Krieger manual cam adjuster.
Reply With Quote
  #8
Old 03-16-2012, 12:34 PM
linkin5's Avatar
Senior Member
1st Gear Member

Join Date: Sep 2010
Location: Indiana
Posts: 970
Default

Sure it's illegal.
Reply With Quote
  #9
Old 03-16-2012, 12:39 PM
Dragone#19's Avatar
Administrator
1st Gear Member

Join Date: Nov 2005
Location: The Silver State
Posts: 17,893
Send a message via ICQ to Dragone#19 Send a message via AIM to Dragone#19 Send a message via Yahoo to Dragone#19 Send a message via Skype™ to Dragone#19
Default

Quote:
Originally Posted by linkin5 View Post
Sure it's illegal.

hahaha, and I am placing a copy of this in the DIY section. Nice write up.
__________________


Quote:
my wife looks at me and just shakes her head as she walks away saying **** like Thank God you are not a crack head.
Reply With Quote
  #10
Old 03-16-2012, 01:09 PM
EMS_0525's Avatar
Da dirty moderator
1st Gear Member

Join Date: May 2006
Location: Pittsburgh, PA
Posts: 12,577
Default

Keep you eye on all those rubber plugs, they dont last that long, get dry and crack.
